- Article name

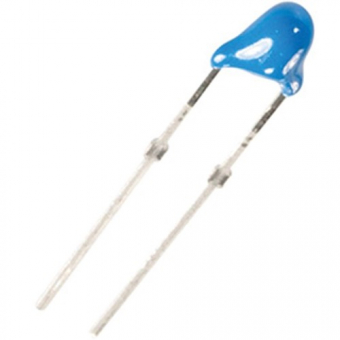

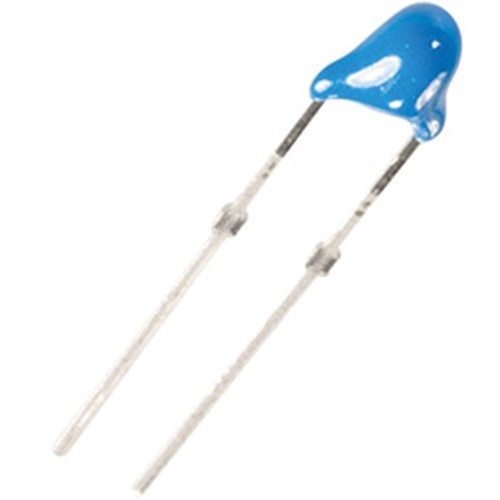

- NTC temperature sensor
- Sensor
- NTC 200 kOhm
- Temperature measuring range
- -60...+150 °C
- Nominal resistance
- at 25 °C: 200 kΩ
- Resistance tolerance
- at 25 °C: ±0,5%
- B-value
- B25/85: 4470 ±0.5%
- Response time temperature
- T66 in air: 15 s
- Self heating
- 1.2 K/mW
- Max. power loss
- 6 mW
- Dimensions
- 4,5 x 3,8 x 2,6 mm
- Length connection wires
- 12,5 mm
- Corresponds to standard article
- 0365 0074
- Weight
- 0.0093 kg
NTC resistors are sensors whose electrical resistance has a negative temperature coefficient. This means the they are more conductive with high temperatures than with low temperatures.
The temperature sensors are suitable for various applications:
- Building automation
- Automotive, such as motors / gear units / brakes / tyres
- Medical technology
- Mechanical engineering
- Fans and ventilation technology
- For electrical household appliances and further applications
